High-quality light steel keel system
Australian Furring System is an Australian ceiling and drywall metal frame system covering metal stud, metal track with hem, furring channel, top cross rail, furring channel track, U angle, external angle, Z external angle, ceiling batten, cavity batten, top batten, top hat, and beaching angle. It offers corrosion resistance, light weight, high strength, earthquake resistance, fireproof safety, efficient prefabricated construction, and green building compliance.
Product Introduction
Australian Ceiling and Drywall Metal Frame System main products : Australian Metal Stud , Australian Metal track with hem , Australian Furring Channel , Australian Top Cross Rail , Australian Furring Channel Track , Australian U Angle , Australian External Angle , Australian Z External Angle , Australian Ceiling Batten , Australian Cavity Batten , Australian Top Batten , Australian Top hat , Australian Beaching Angle etc.
Features :
Excellent corrosion resistance, light weight yet high strength and earthquake resistance, fireproof and safe, prefabricated construction for high efficiency, shortening construction time and reducing labor costs, high space utilization, flexible retrofitting, and compliance with Australian green building star rating standards. This system is widely used in low-rise residential buildings, multi-story apartments and commercial partitions in Australia.
Australian Ceiling and Drywall Metal Frame Accessories:
TCR Suspension Clip (Steel clip) 2 . TCR Suspension Clip
3 . Adjustable Direct Fix 4. Beta Fix Middle Clip 5. Length Beta Fix (Large Clip)
Locking Key (LK Clip ) 7. Rod Bracket Long Clip 8 . Angle Rod Bracket L Clip
Big Direct Fix 10. Small Direct Fix 11. Concrete-screw fix 12 Concrete
13 . Timber/steel-175 ( Cross Tee Large Clip ) 14. Timber/steel-75(Cross Tee small Clip ) 16. Galvanized Suspension Rod 17 . Small Cross Tee Large Clip
Technical Specifications
Australian Metal Frame Product Accessories
| Australian light steel keel systems ( Australian Standards AS/NZS) | |||||||
| Name | Size | Name | Size | Name | Size | Name | Size |
| Metal Stud | 51×33.5×35.5×0.55 | Metal track with hem | 51x28x28x0.55 | Furring Channel | 38x28x28x0.55 | Ceiling Batten | 36x16x0.5 |
| 64×33.5×35.5×0.55 | 64x28x28x0.55 | 38x16x16x0.55 | 36x24x0.5 | ||||
| 76×33.5×35.5×0.55 | 76x28x28x0.55 | 43x40x92x0.55 | Channel Track U Angle | 28x30x20x0.55 | |||
| 92×33.5×35.5×0.55 | 92x28x28x0.55 | 40x40x88x0.55 | 16x30x20x0.55 | ||||
| Top hat | 75x35x20x20x1.15mm | Beaching Angle | 70x70x1 | Top Cross Rail | 25x21x21x0.75 | Raw Materials | (DX51D+Z) |
| 50x15x20x20x1.15mm | 70x30x1 | External Angle | 30x30x0.55 | Zinc Coating | 120g / 275g | ||
| 50x35x20x20x1.15mm | 50x50x1 | Z External Angle | 30x10x10x0.55 | MOQ | 10Ton | ||
| Picture | Name | Picture | Name | Picture | Name | Picture | Name |

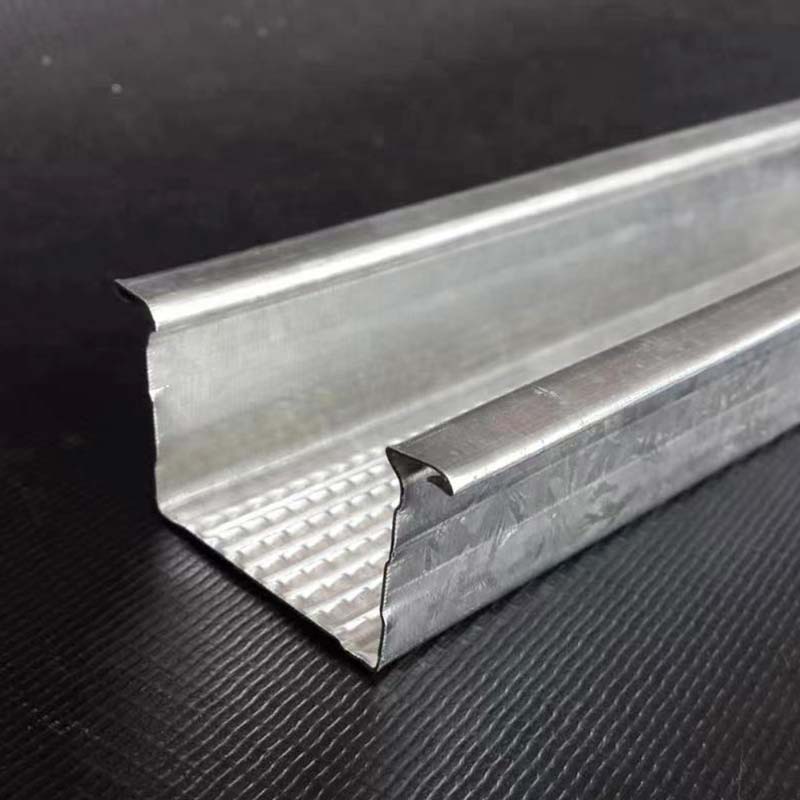

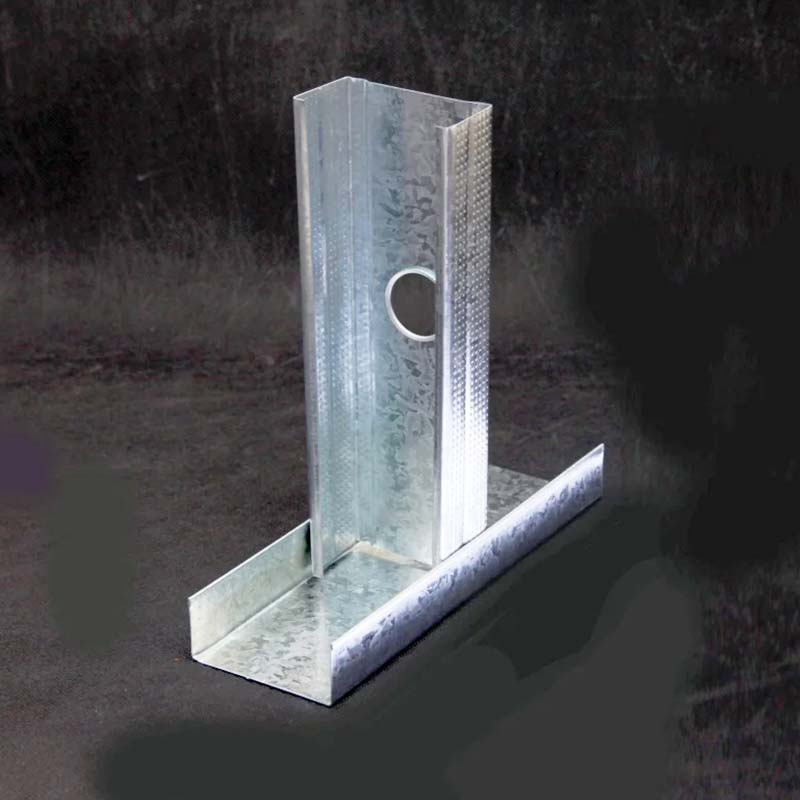

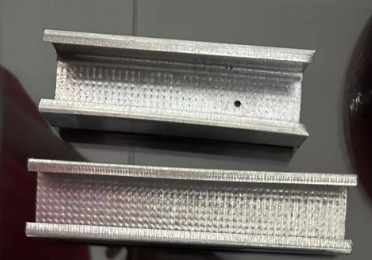

 | Metal Stud & Metal track with hem |  | Furring Channel |  | Top Cross Rail |  | Ceiling Batten |

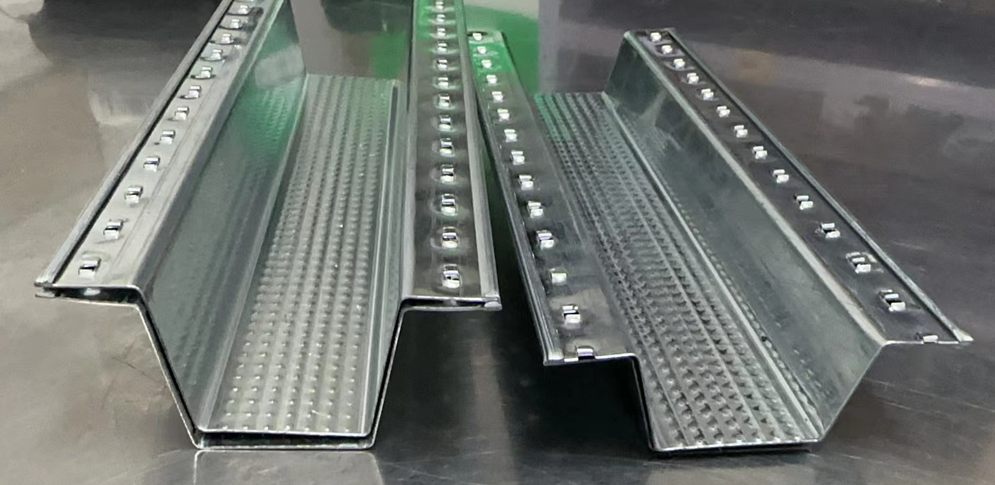

 | Z External Angle |  | Cavity Batten Top Batten |  | Top hat |  | Furring Channel Track U Angle |

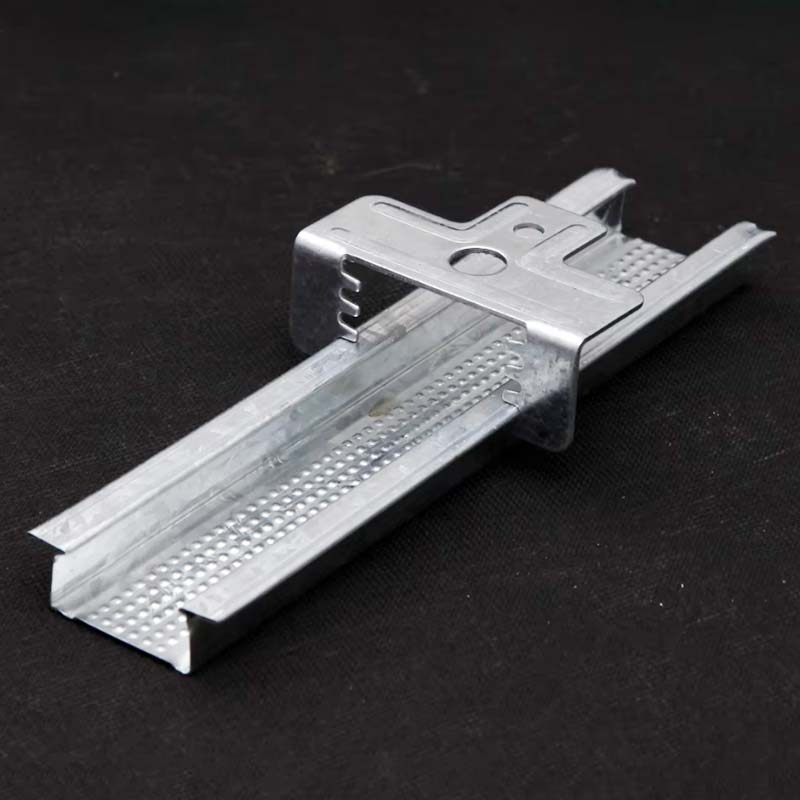

 | Side mounted TCR Suspension Clip |  | TCR Suspension Clip |  | concrete-screw fix |  | Adjustable Direct Fix |
 | Rod Bracket |  | Beta Fix |  | length Beta Fix |  | Direct Fix |
 | Timber / Steel-175 |  | Timber / Steel-75 |  | Locking Key |  | Direct Fix |
