Product Introduction

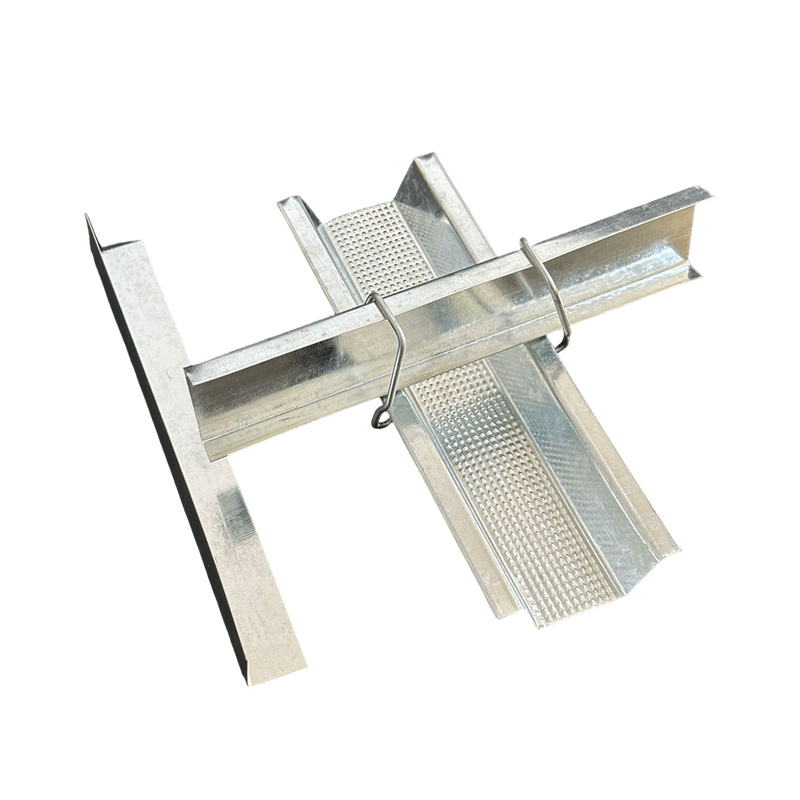

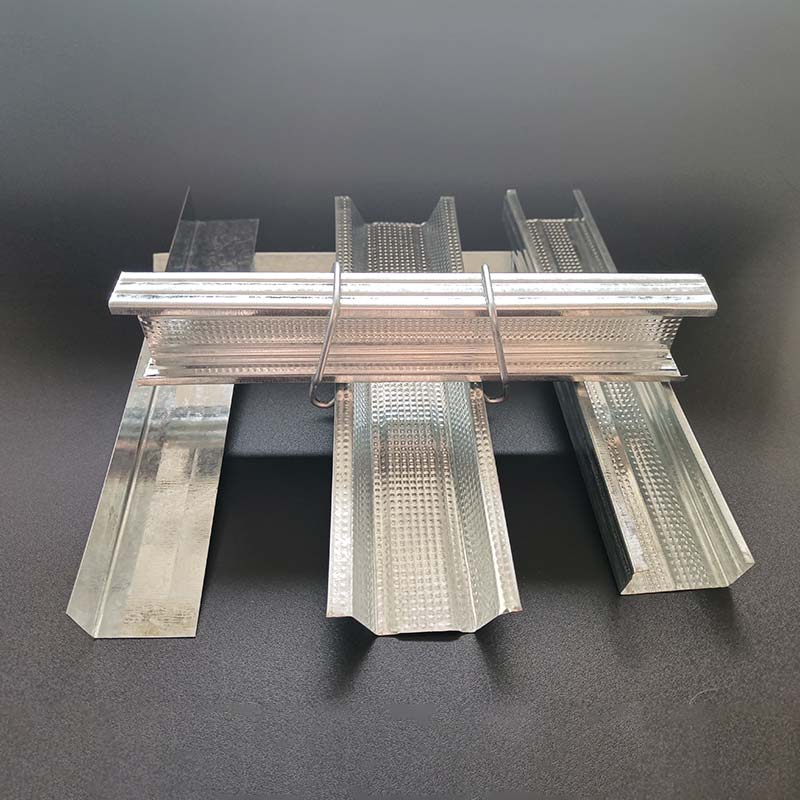

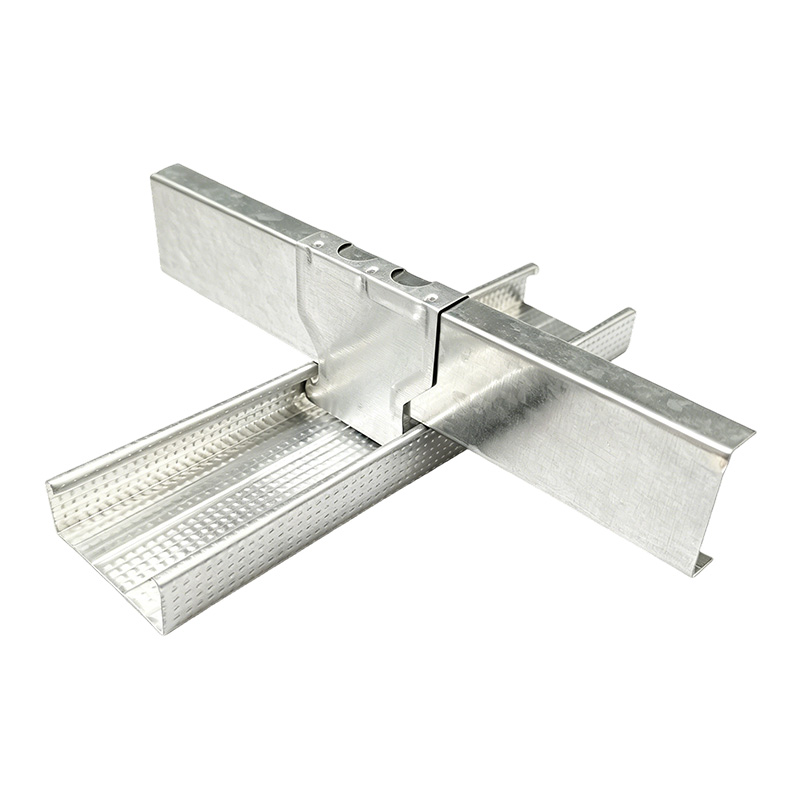

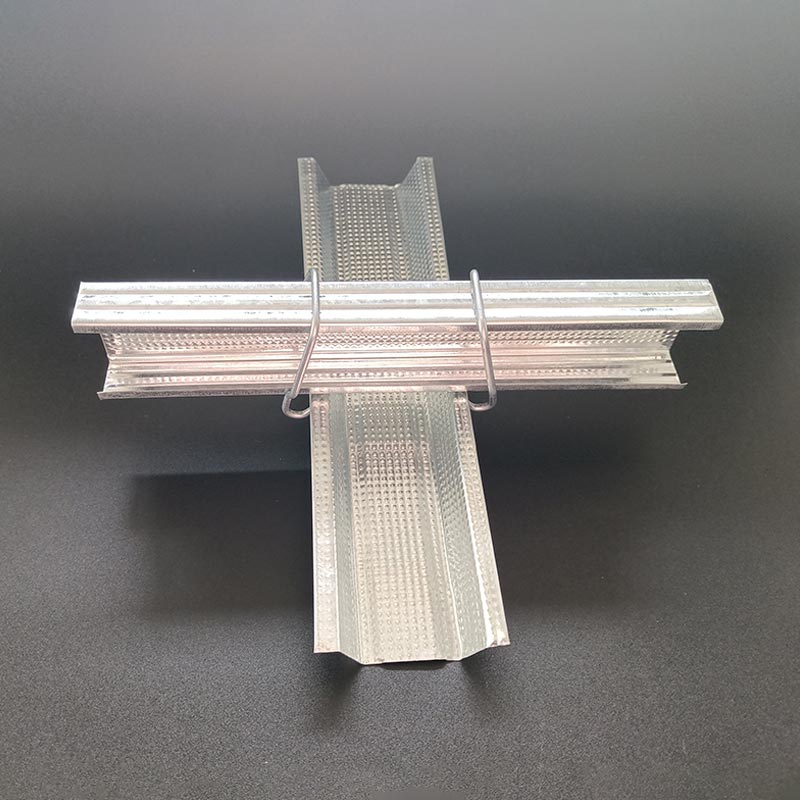

The Colombia light-gauge steel ceiling system ( Omega, Vigueta , Angulo ) is a high-efficiency interior finishing system that utilizes galvanized light-gauge steel framing combined with facing materials such as paper-faced gypsum board. Due to its light weight yet high-strength nature, as well as its fire resistance, seismic resilience, and ease of installation, it is widely used in commercial spaces, high-end residences, and office buildings. Features: 1.

High-strength, lightweight framework; Stable and precise structure; Compatibility with various surface finishes; Superior fire and moisture resistance; Excellent seismic performance; Highly efficient installation; Flexible layout with concealed, recessed professional lighting; Easy maintenance, allowing for the removal of individual panels at any time

Technical Specifications

Raw Materials	Q195	Clour	Silver	Surface	Galavanized	Shape	C L Profile
Zinc Coating	40-275g/M2	Standard	GB11981-2001	Thickness	0.27-0.6mm	Load Port	TianJin
Omega	30×16	Vigueta	40×20	Angulo	20×30	Stud Track	39×32
	32×17		38×17		29×19		59×32
	35×17		37×17		27×19		89×32

Picture	Name	Picture	Name	Picture	Name	Picture	Name

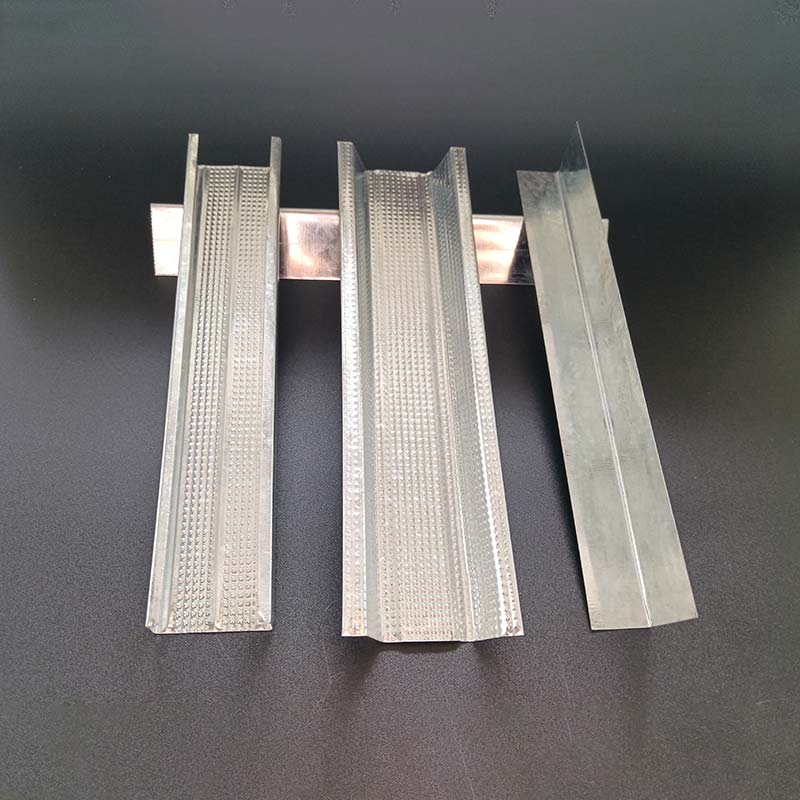

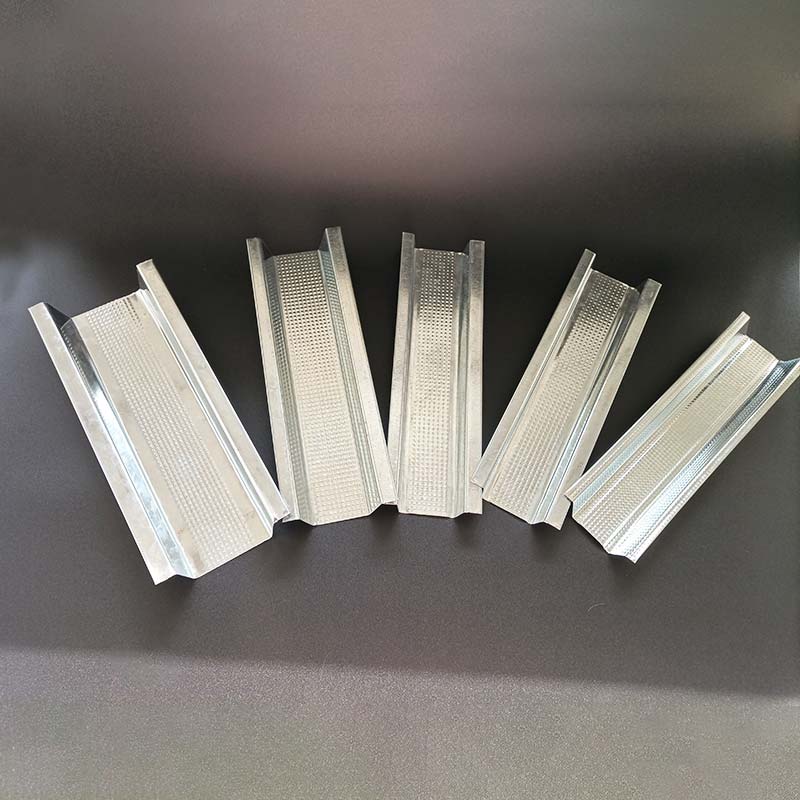

	Omega		Vigueta		Angulo		Stud Track
	Black Drywall Screw		Pan framing head self drilling screw		Wafer head Sharp Fined Point screw		Wafer head self drilling screw
	Wooden Screw		Clip wpc		Steel coil		Steel Sheet
