Product Introduction

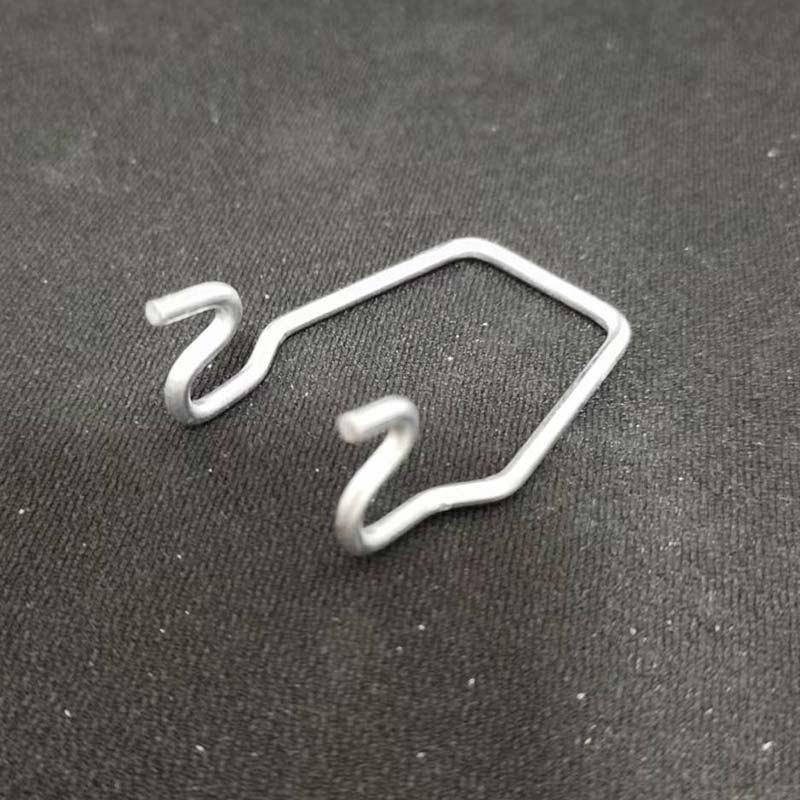

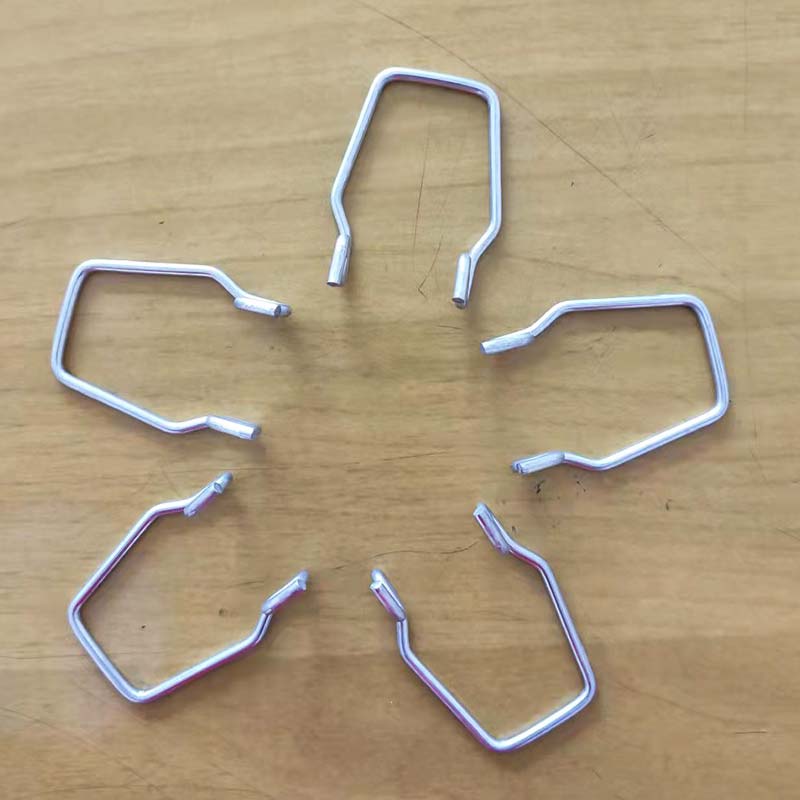

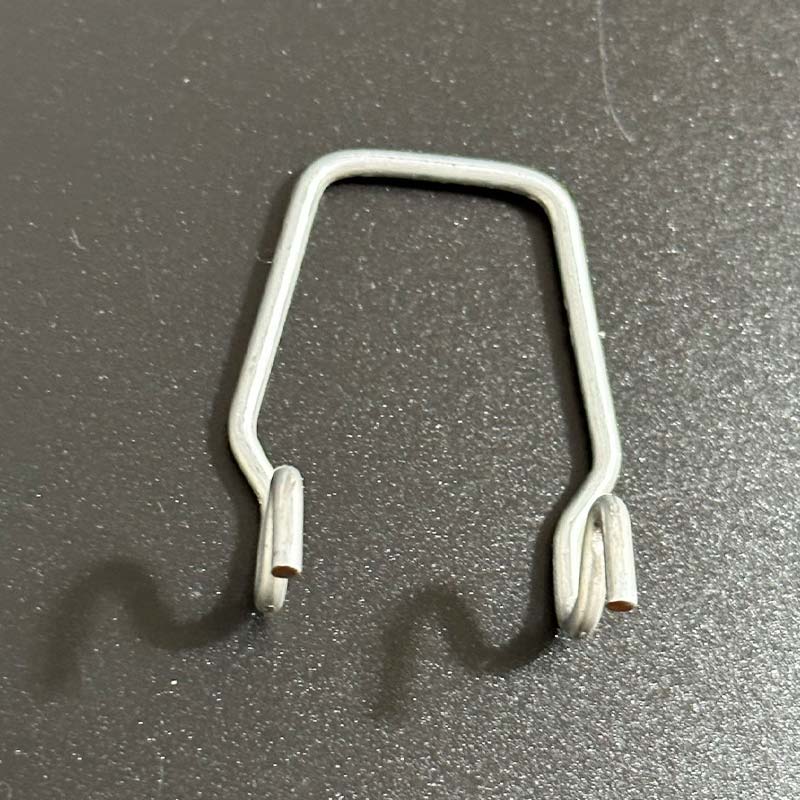

Wire Clip (Adjuster Clip ) is installation of main channel and main channel Raw Materials : Hot Galvanized Wire Pack :100 Pcs/ Bad 1000pcs / Carton Weight: 6.5kg / Carton Carton Size : 34 x 20 x 20mm Steel U-shaped metal clip. This clip is formed from a single piece of steel or stainless steel and features a U-shaped design. It has a metallic silver finish, high structural strength, and excellent rust resistance, corrosion resistance, and toughness, offering a longer service life than plastic clips.

In the field of architectural renovation, it is used in light-gauge steel keel ceiling systems to secure the main keel, preventing lateral displacement and enhancing the overall stability of the ceiling; it is also used to secure water and gas pipes in residential renovations, preventing pipe movement. Suspended Ceiling Height-Adjustment Furring Channel Clip In suspended ceiling projects requiring elevation adjustments (such as creating multi-level ceiling designs), this component clips the secondary furring channel onto the primary channel or threaded suspension rod.

It secures the channel through its inherent elasticity eplacing traditional bolted connections hereby simplifying installation, boosting efficiency, limiting lateral channel displacement, and enhancing the overall structural stability of the ceiling. Conduit Suspension Clip It can also function as a U-channel clip used with threaded rods to secure KBG/JDG electrical conduits. In multi-level ceiling wiring projects, it suspends and fastens conduits to the furring channels, organizing the wiring layout and preventing movement or loosening, thus meeting the specific routing requirements of variable-height ceilings.

Other Applications In scenarios requiring structural height adjustments uch as the construction of agricultural greenhouses or fencing his clip can be used to secure pipes and mesh panels. It enables rapid connection of structural components and easy adjustment of the overall height, while also allowing for disassembly and reuse.

Product Picture and Name

Picture	Name	Picture	Name	Picture	Name	Picture	Name
	Wire Clip		38 Main Channel Hanger		38 Main Channel Connector U Clip		Metal Fisher Expansion Connector
	Wire Hanger		Thredead Rod		Galvanized Nut M6 M8		Metal Fisher Metal Anchor
	Spring Clip Butterfly Clip		Black Spring Clip		Wire Hanger		L Clip
	Omega Furring Channel		Main Channel C Runner Channel		Wall Angle Galvanized Angle Corner Angle		Corner Bead
