Product Introduction

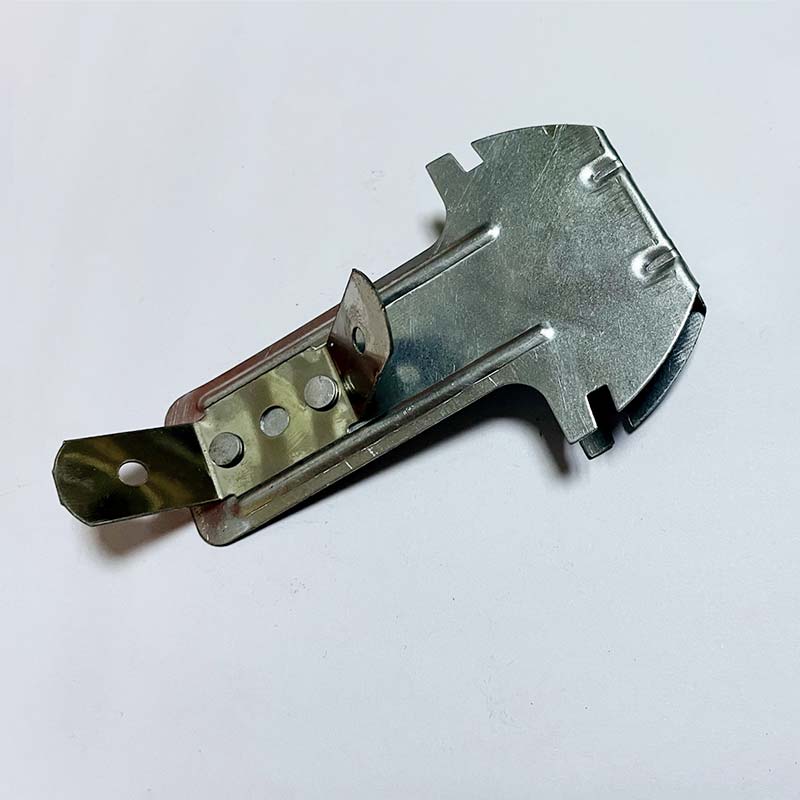

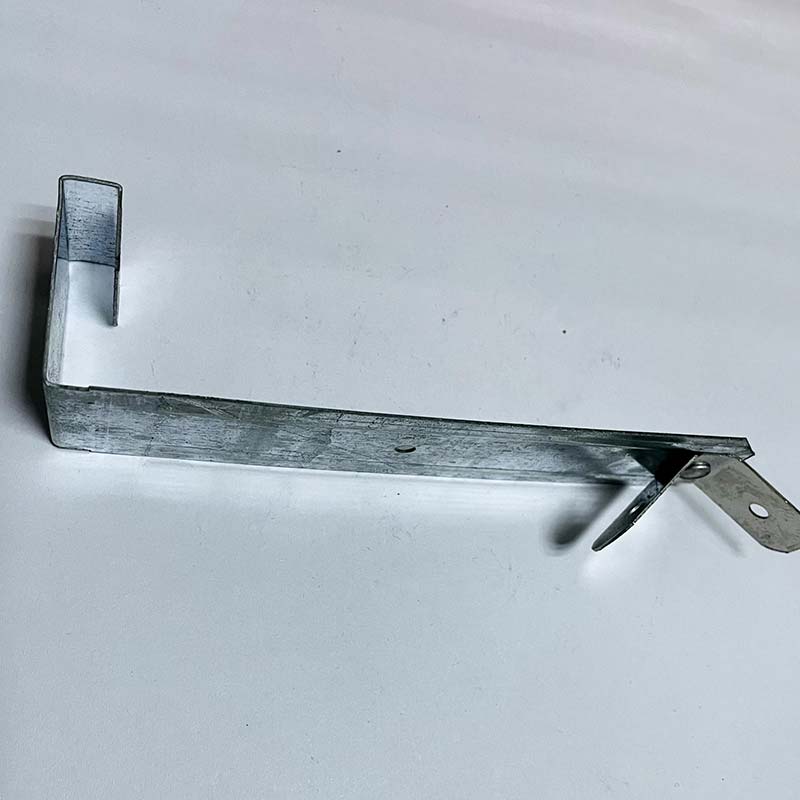

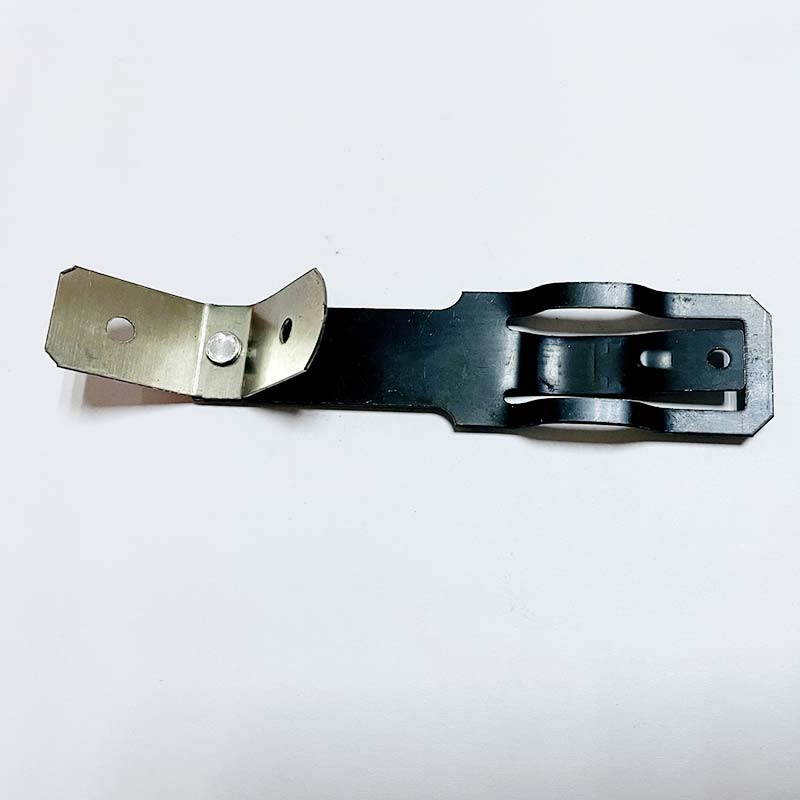

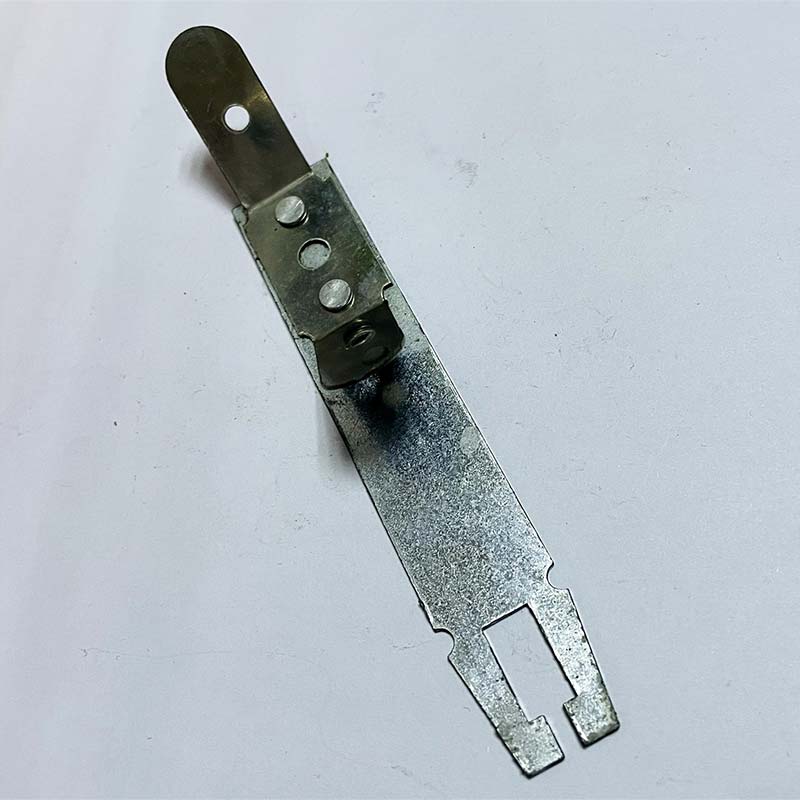

The adjustable through-type hanger for light-gauge steel keel ceilings is a key component used to connect the suspension rod to the main keel within the ceiling system. This hanger is manufactured from high-quality galvanized cold-rolled steel sheet via a single-piece stamping process. It features a riveted mounting tab at the top for connection to fully threaded suspension rods and a clip-style base designed to fit the main keel; the fixing position can be adjusted via rivets, allowing for flexible regulation of the ceiling elevation.

The surface is galvanized for rust and corrosion resistance, and the overall structure offers high rigidity and deformation resistance, making it compatible with standard main keels such as the 38 main channel and 50 furring channel.

This suspension component is primarily designed for light-gauge steel keel ceiling systems and is suitable for the following applications: Standard flat ceilings: It connects fully threaded suspension rods to the load-bearing main keel, suspending and securing the main keel to the structural ceiling slab to support the entire weight of the ceiling system; it is a standard accessory for gypsum board and mineral wool board ceilings.

Multi-level or decorative ceilings: Featuring an adjustable design, it allows for flexible suspension height adjustments based on the ceiling’s design elevation, meeting the installation requirements for stepped or variable-height decorative ceilings.

Product Picture and Name

Picture	Nombre	Picture	Nombre	Picture	Nombre	Picture	Nombre
	CD Adjustable Hanger		CD Adjustable hanger		CD Small Adjustable hanger		50 Vertical Lift
	Black Connector Adjust Clip		Black Connector Adjust Clip		T Bar Adjust hanger		J Hanger Adjust Clip

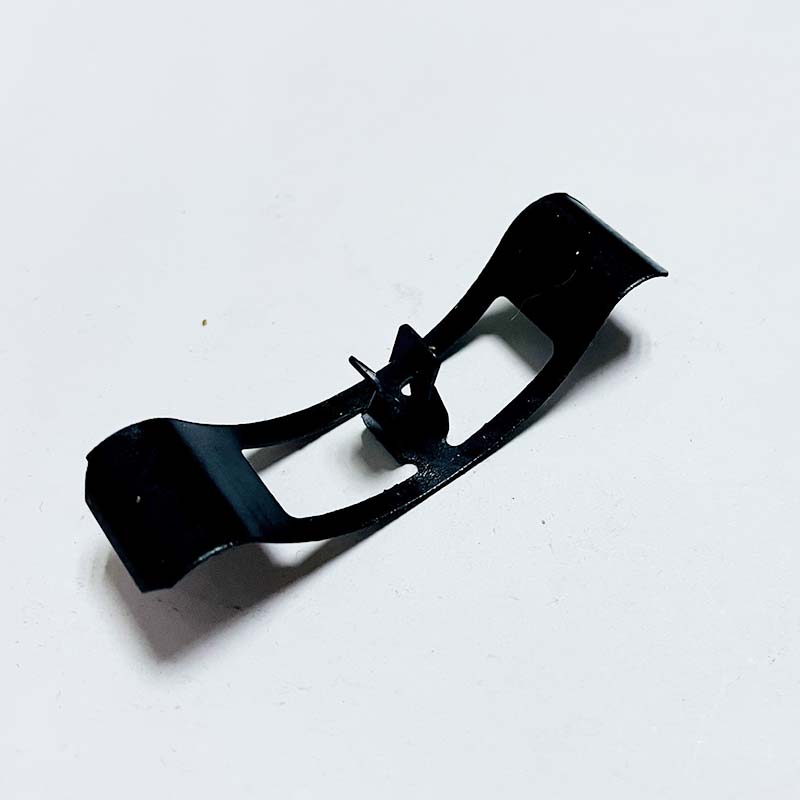

	Spring Clip Butterfly Clip		Black Spring Clip		Wire Hanger		Metal Fisher Expansion Connector
	L Clip		Thredead Rod		Galvanized Nut M6 M8		Metal Fisher Metal Anchor
	Wire Clip		38 Colgador de canales principales		38 Main Channel Connector U Clip		Philippines Double Furring Channel Main Hoist
	Clip de canal de 50 enrasadores		C Connector		Main Channel and Furring Channel 4 Claw Clip		Double Furring Channel Connecter
