Product Introduction

These specialized accessories for Australian-standard lightweight steel ceiling grid systems are manufactured via integrated stamping from galvanized cold-rolled steel sheet. Compliant with Australian high-zinc anti-corrosion standards, the range includes essential components such as hangers, connectors, clips, and adjustable suspension brackets.

Processed using a hot-dip galvanizing method (275g/m coating) that meets Australian standards, these parts feature a coating thickness significantly greater than that of standard components, offering superior corrosion and rust resistance suitable for high-humidity and coastal, high-salinity environments. All accessories are precision-stamped using custom molds, ensuring high dimensional accuracy and a perfect fit with the corresponding Australian-specification steel profiles.

This comprehensive accessory suite is designed specifically for Australian light gauge steel ceiling systems, primarily for use in ceiling installations: Suspension and connection: Hangers equipped with vibration-dampening pads, used in conjunction with fully threaded rods, suspend and secure the main keel to the structural ceiling; the pads attenuate sound transmission, thereby enhancing the ceiling’s acoustic insulation performance.

Keel extension and splicing: Straight connectors facilitate the extension of main and secondary keels; when the ceiling span exceeds the length of a single keel, these connectors allow for rapid extension while ensuring structural stability at the joint. Main and secondary keel interlocking: Various clip-style hangers secure secondary keels to the main keels, replacing traditional self-tapping screw fixings; this interlocking design restricts keel displacement and prevents ceiling deformation.

Ceiling elevation adjustment: Adjustable hangers accommodate diverse elevation requirements articularly for multi-level or stepped ceiling designs llowing for flexible positioning of the keels to meet specific design specifications.

Product Picture and Name

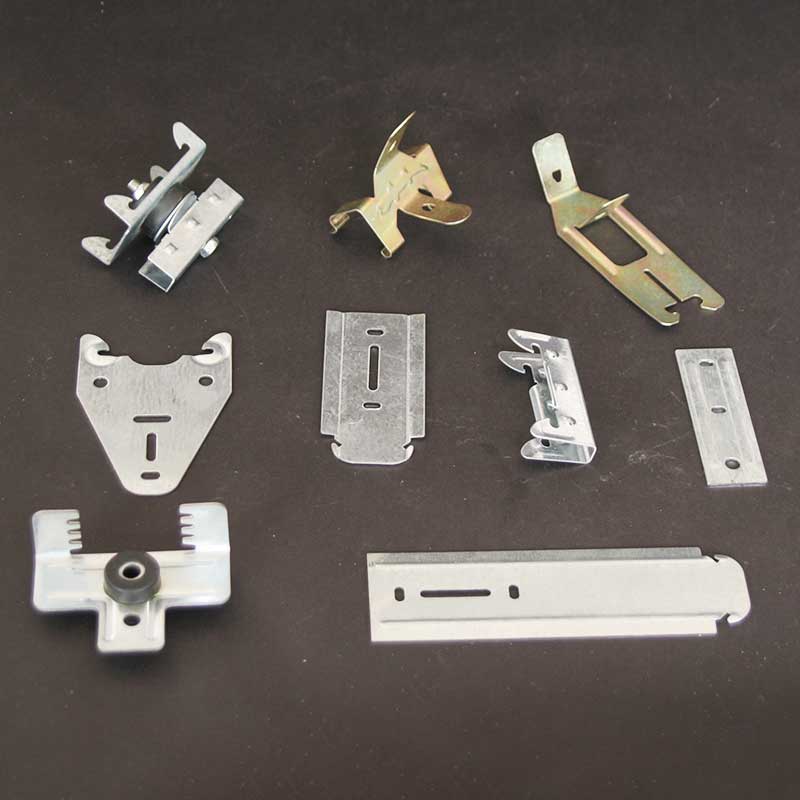

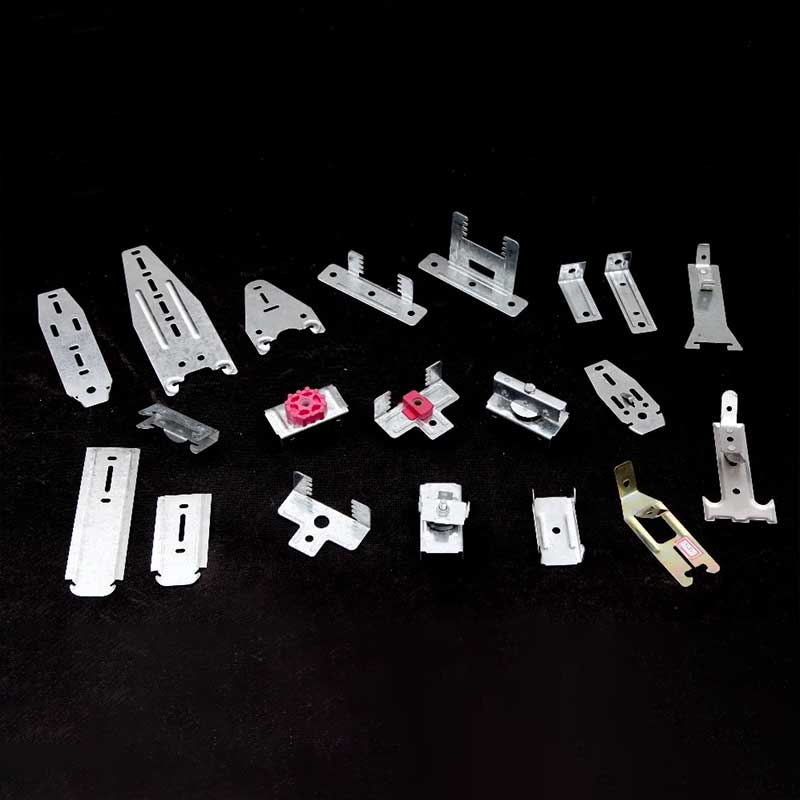

Australian Standard Light Weight Steel Ceiling Grid Systems Accessories
Picture	Nombre	Picture	Nombre	Picture	Nombre	Picture	Nombre
	Side mounted TCR Suspension Clip		TCR Suspension Clip		concrete-screw fix		Concrete
	Adjustable Direct Fix		Beta Fix		length Beta Fix		Timber / Steel-175
	Rod Bracket		Right Angle Rod Bracket		Locking Key		Timber / Steel-75
	Direct Fix		Direct Fix		Big Cross Tee Large Clip		Small Cross Tee small Clip
	RC Clip Direct Fix Furring Channel Resilient Mount		Resilmount Direct Fix Hanger		Resilmount Direct Fix Hanger		Furring Channel Clip
